Talitor

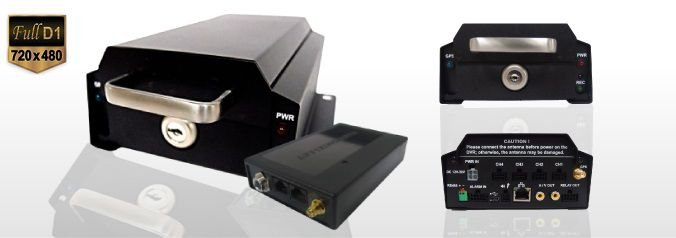

DVR CM0703 4CH Full D1 Mobile DVR dengan Wireless, GPS & G sensor

1

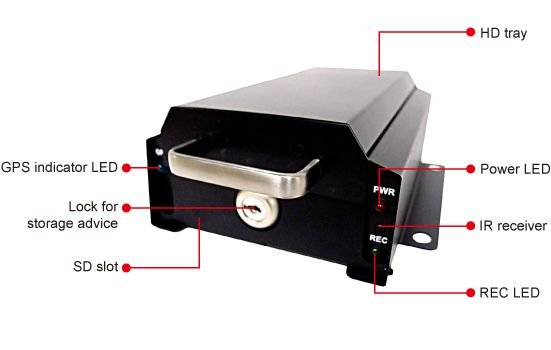

Overview

3

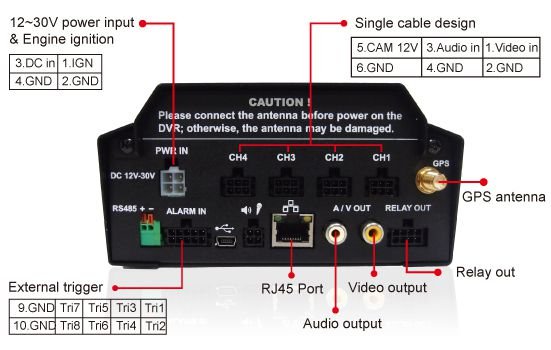

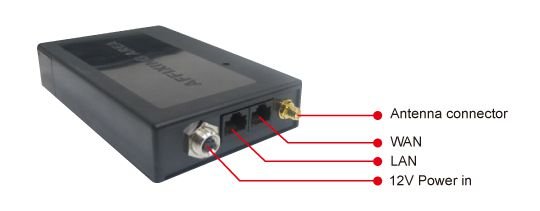

Diagram

5

6

7

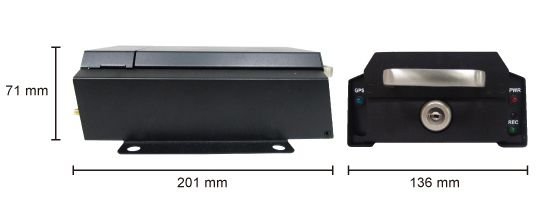

Dimension

8



Features

9

  • 4-ch video and 4-ch audio input
  • Hi resolution Full D1 (720x480) at real-time on each channel
  • GPS features : vehicle speed, location logging, time sync, eMap link, Live tracking
  • Wireless communication for remote live view and playback
  • Advanced CPU for Triplex (recording, playback, & remote access) simultaneously
  • Dual-streaming for IE remote access, smart phone viewing, & software live connection
  • Removable HDD tray for the ease of recordings retrieval
  • Engine ignition for system power on/off control
  • Start delay for HDD protection and stop delay for prolonged recording
  • Support 2.5”SATA HDD 500GB+, & SDXC standard (64GB ~ 2TB)
  • 8 sets of external trigger, sufficing for most vehicle applications
  • Wide range of working voltage from DC12V~30V
  • Power surge protection up to 40VDC
  • Backup: USB drive/ SD card / Software via PC
  • G force (3-axis) measurement

10

Application/Demo

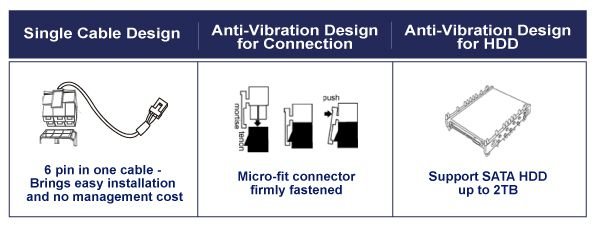

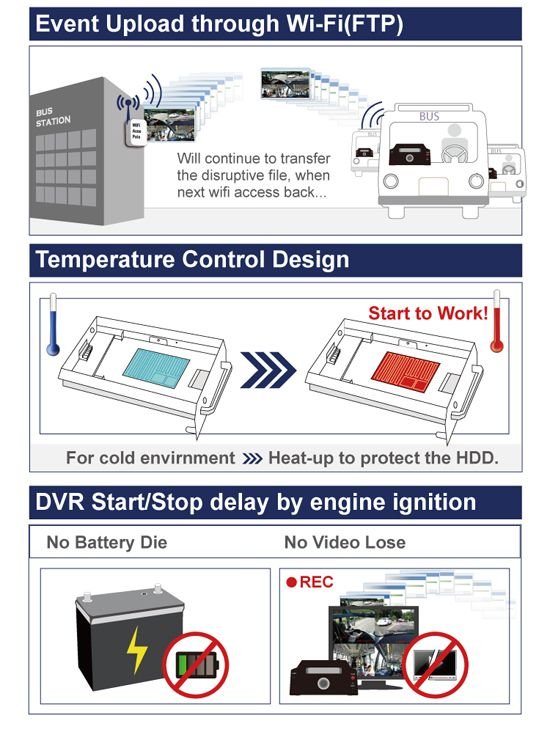

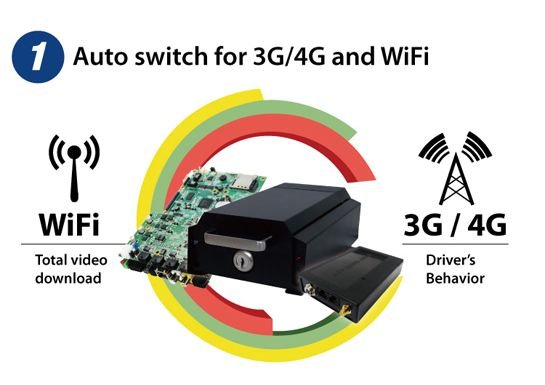

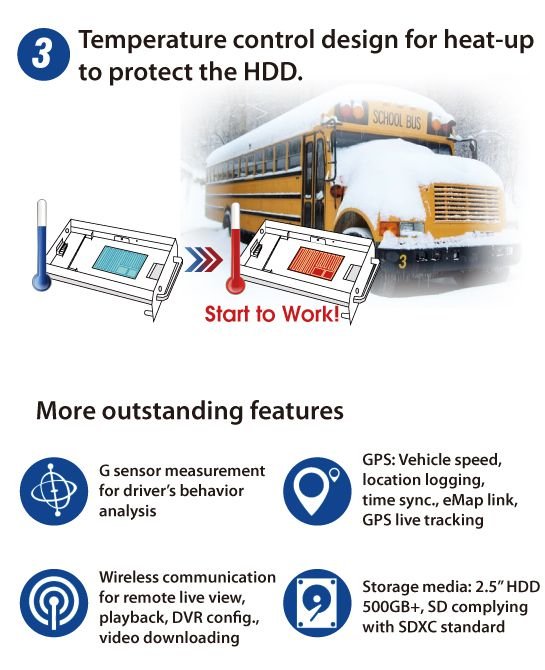

Advantage

11

12

13

14

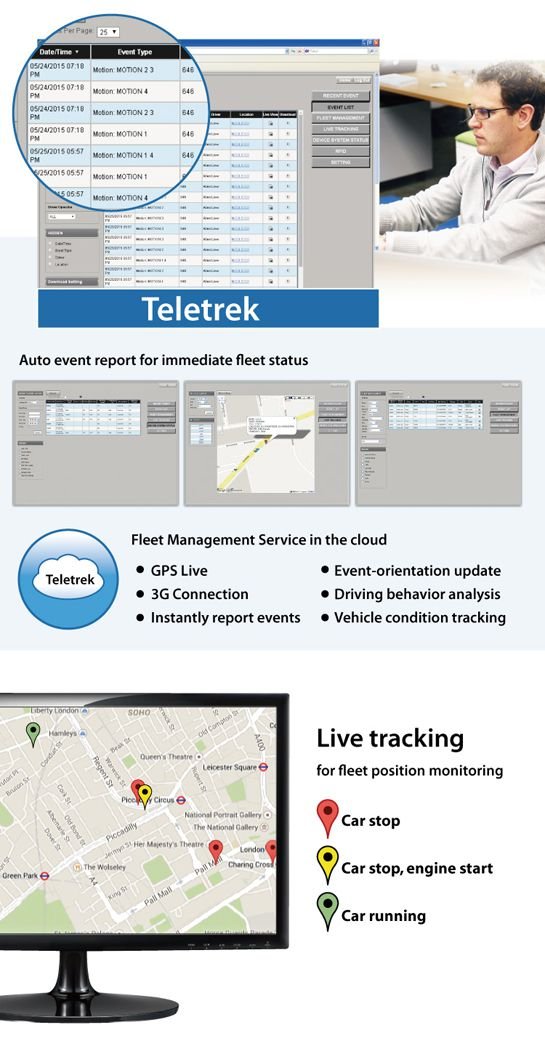

 Fleet Management - Teletrek

15

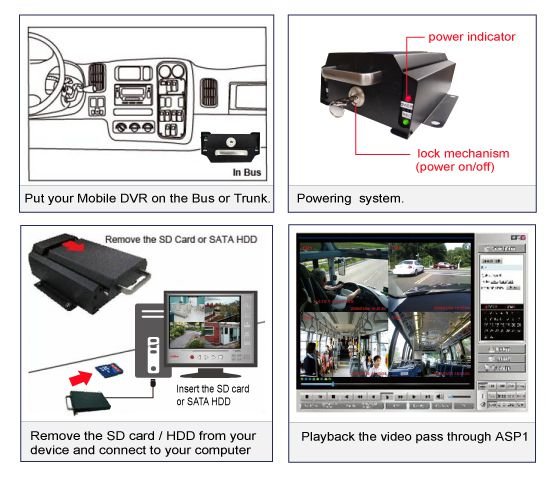

Video Save and Convenient

16

Customization

  • Roadside assistance
  • Anti-theft warming
  • Navigation
  • Route logger

17
