Talitor

DVR CM0704 8CH Mobile DVR dengan GPS & G sensor

1

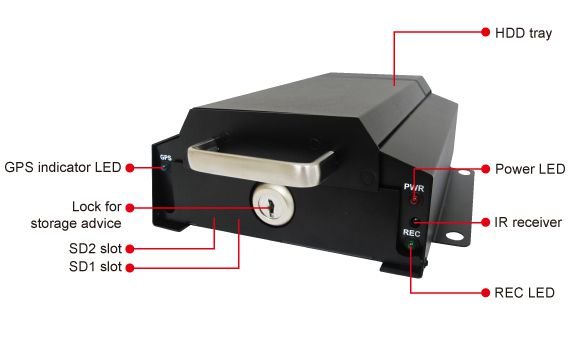

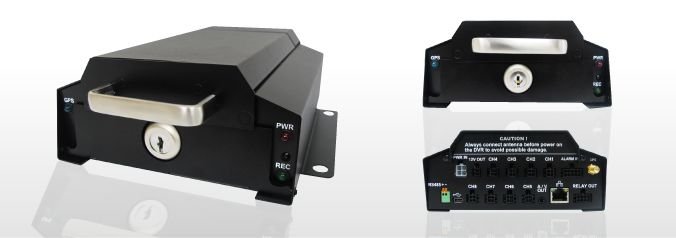

Overview

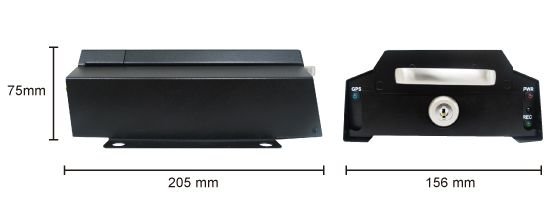

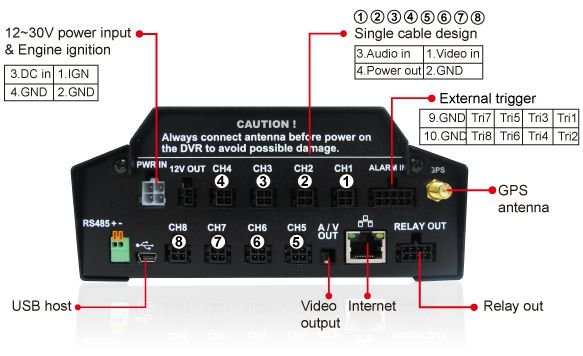

 Diagram 3 4 ¢ Dimension 5



Feature

6

  •  8-ch video and 8-ch audio input
  • Hi resolution(720x480) on each channel
  • GPS features : vehicle speed, location logging,time sync, eMap link
  • Engine ignition for system power on/off control
  • Start delay for HDD protection and stop delay for prolonged recording
  • Support 2.5” SATA HDD 500GB+, & SD v3.0 design supporting up to SDXC 64GB ~ 2TB
  • 8 sets of external trigger, sufficing for most vehicle applications
  • Wide range of working voltage from DC12V ~ 30V
  • Power surge protection up to 40VDC
  • Backup: USB drive/ SD card / Software via PC
  • G sensor (3-axis accelerometer) for driver’s behavior analysis

 7

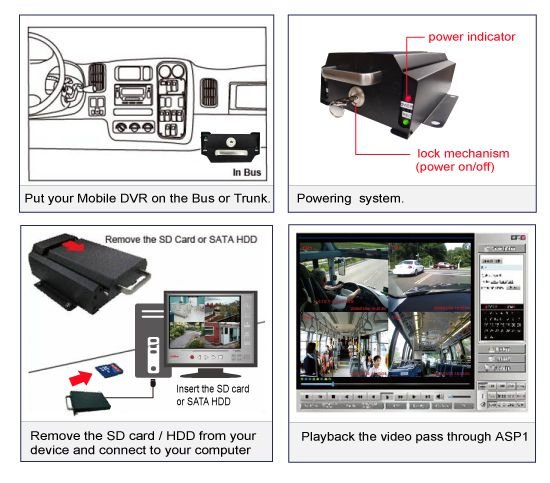

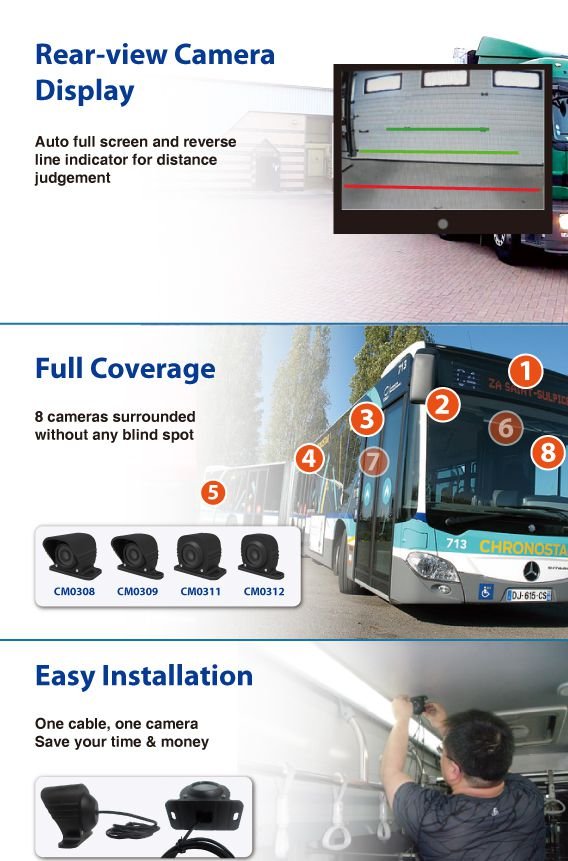

Application / Demo

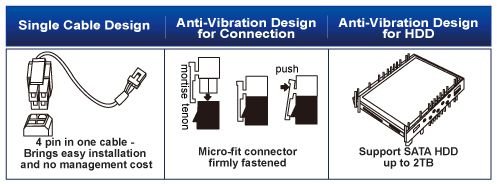

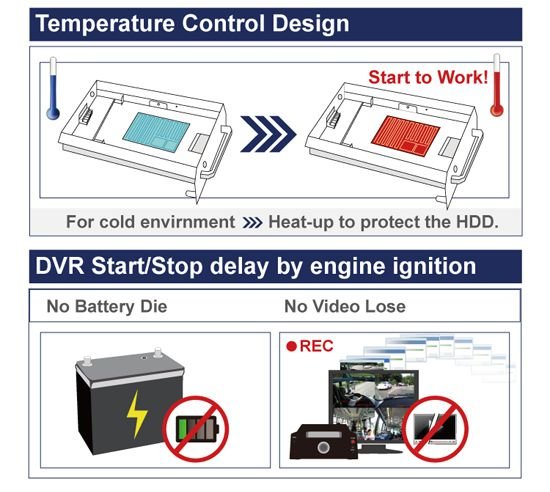

Advantage

8

9

ASP1 Software

Video Save and Convenient

10

Customization

  • Roadside assistance
  • Anti-theft warming
  • Navigation
  • Route logger

11

Content Package
